Blauberg Germany Centro-M 150 ( 6")
170.000 د.ع
Blauberg Germany Centro-M 250 ( 10")
259.000 د.ع
Blauberg Germany Centro-M 200 ( 8″)
205.000 د.ع

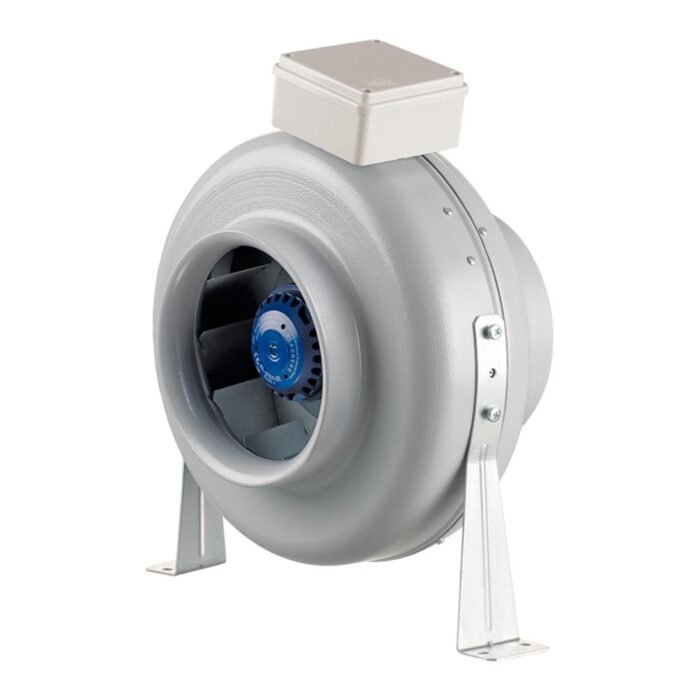

Inline centrifugal fan d 200 mm, 950 m3/h
| Material |
Iron |
|---|---|
| Weight |
520g |
Description
| USE | |
| Supply and extract ventilation systems installed in various premises. Direct mounting inside air ductworks. Compatible with ∅ 100 to 450 mm round air ducts. |
MOUNTING
Any mounting position.The fans with the connecting diameter from 100 up to 315 mm are fixed to wall or ceiling with mounting brackets supplied as a standard.The fans with the connecting diameter from 355 up to 450 mm are fixed with mounting brackets fixed on the casing.Flexible air ducts are fixed on the fan spigots with clamps.
MOTORS ingle-phase external rotor motor with a centrifugal impeller with backward curved blades.Equipped with ball bearings for longer service life.Overheat protection with built-in thermal switches with automatic restart.Dynamically balanced impeller.
